Avalon Wood Windows French Doors


AVALON GLAZED DOOR STYLES
Standard door sizes and materials are listed.
Quotes for other sizes and materials are available.


Specifications » Click on any image for a larger view. «

Page 1


Page 2


Page 3


Page 4


Page 5


Page 6


Page 7


Page 8


Page 9


Page 10


Page 11


Page 12


Page 13


Page 14


Page 15


Page 16


Page 17


Page 18


Page 19


Page 20


Page 21


Page 22


Page 23


Page 24


Page 25


Page 26


Page 27


Page 28


Page 29


Page 30


Page 31


Top of Page
SIZES
  • Widths - 12" to 48"
  • Heights - 48" to 120"
  • Thickness - 1-3/4" to 2-1/4"
GLAZING OPTIONS
  • 1 Lite • 5/8" Insulated Glass
  • 1 Lite • Low-E • 5/8" Insulated Glass
  • 1 Lite • Single Glazed
  • True Divided Lite • Single Glazed
  • True Divided Lite • 1/2" Insulated Glass
  • True Divided Lite • Low-E • 1/2" Insulated Glass
    Each lite option includes tempered glass

LAMINATED ENGINEERED DOOR STILES

Standard sizes and materials are listed. Quotes for other sizes and materials are available.

SIZES
  • Widths: 4-1/4" to 6-5/8" in 1/8" increments.
  • Heights: 81, 85, 97, 109, & 121"

MATERIALS
  • White Pine
  • African Mahogany
  • Honduras Mahogany
  • Knotty Alder
  • Alder
  • Red Oak
  • White Oak
  • Soft Maple
  • Select White Maple
  • Spanish Cedar
  • Knotty Pine



All Glues are Type 1 Exterior Grade
per ASTM-D-5571
Wet Use

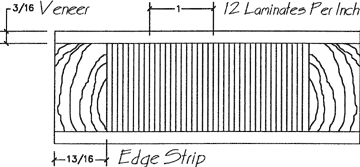

SPECIFICATIONS
  • LVL (laminated veneer lumber) cores
  • 3/16" veneer faces
  • 13/16" edge strips
  • Warranty against warpage is 2 years
Wood Characteristics · Finishing · Fitting/Hanging/Maintenance · Warranties · Avalon Doors in PDF (2MB download)
