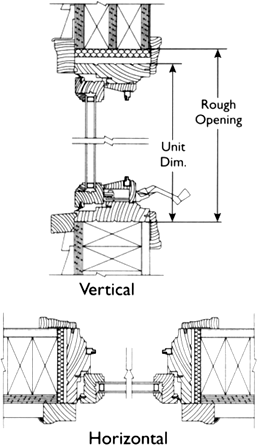

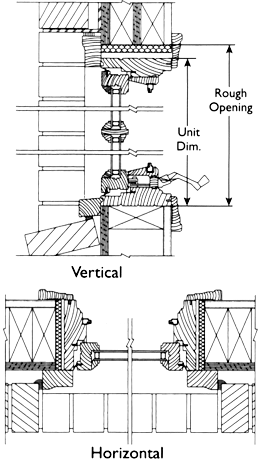

SECTION DETAILS
(Not to scale.)
| 4-9/16" Wood Siding
|
4-9/16" Masonry Wall
|
FEATURES
- Interior and exterior wood surfaces are to be finished with with your choice of paint or stain.
- 5/8" insulated glass manufactured to meet today's changing climates is standard.
- Your choice of white or bronze hardware and white or bronze screens.
LIGHT CONFIGURATION OPTIONS
- Single Glazed true divided lights with 1-1/4" or 7/8" muntin bars.
- 1" Insulated simulated divided lights
- 1" Insulated with white or bronze grills between the glass.
- Insulated true divided lights with 1-1/4" muntin bars.
OTHER OPTIONS
- Grey or bronze tint, obscure, or tempered glass.
- Applied jamb extensions up to 7-1/2".
|
|
FEATURES and OPTIONS
 |
